- Typical Applications
-
- OUTPUT
- 0.01W-0.02W (APPROX)
-
- WEIGHT
- 1.3g (APPROX)
- Precious Metal Brush
- Low noise
- Rare earth magnets
Performance Table
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| V | r/min | A | r/min | A | mN·m | g·cm | W | mN·m | g·cm | A | |||
| RF-J20WA | 5Z145 | 1.1 - 2.0 | 1.3 | 12900 | 0.028 | 8760 | 0.060 | 0.020 | 0.20 | 0.020 | 0.06 | 0.6 | 0.13 |

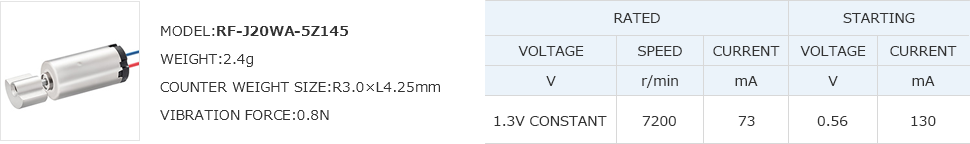

Vibration Motor
Other Winding Specifications Available in the Web Catalog
- RF-J20WA-5Z145
